Description

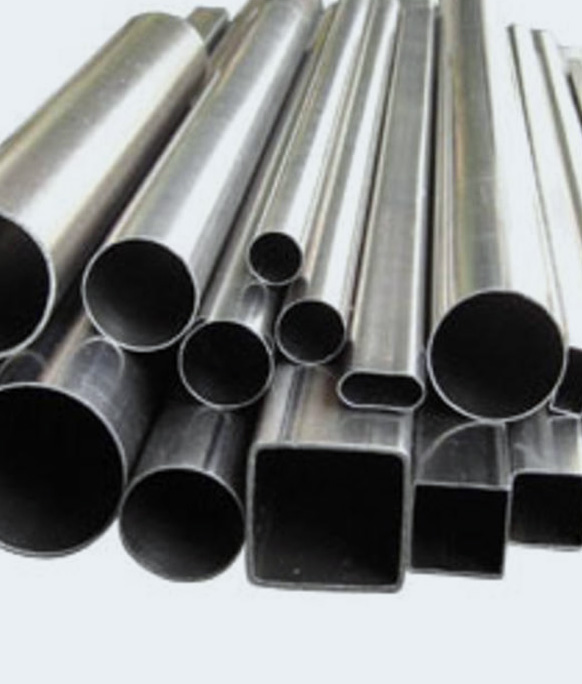

Il existe trois principaux types de tubes en acier : cylindriques (ronds), rectangulaires et carrés. Ces différents tuyaux sont principalement utilisés en maçonnerie, notamment en raison de leurs propriétés physiques (maintien, résistance à la flexion, à la compression et à la torsion)1,2,3. Ces tubes peuvent être reformés à l’aide d’outils adaptés tels que des scies circulaires, des lasers ou des chalumeaux oxyacétyléniques.
Table de Référence
| REF | DESIGNATION | NUANCE | FORME | DIM |
| 8-1210 | TUBE ACIER ROND12*108-1210 | ETIREE | ROND | 12*10 |
| 8-1215 | TUBE ACIER ROND12*98-1215 | ETIREE | ROND | 12*9 |
| AC-TUBE 14*10 | TUBE ACIER ROND14*10 | ETIREE | ROND | 14*10 |
| 8-1420 | TUBE ACIER ROND14*108-1420 | ETIREE | ROND | 14*10 |
| 8-1410 | TUBE ACIER ROND14*128-1410 | ETIREE | ROND | 14*12 |
| TUBE-AC-ROND14x2 | TUBE ACIER ROND14*2 | ETIREE | ROND | 14*2 |
| 8-1630 | TUBE ACIER ROND16*108-1630 | ETIREE | ROND | 16*10 |
| 8-1620 | TUBE ACIER ROND16*128-1620 | ETIREE | ROND | 16*12 |
| 8-1610 | TUBE ACIER ROND16*148-1610 | ETIREE | ROND | 16*14 |
| TUBE-AC-CARRE16x1.2 | TUBE ACIER CARRE16*16*1.2 | ACIER | CARRE | 16*16*1.2 |
| 8-1840 | TUBE ACIER ROND18*108-1840 | ETIREE | ROND | 18*10 |
| 8-1830 | TUBE ACIER ROND18*128-1830 | ETIREE | ROND | 18*12 |
| 8-1820 | TUBE ACIER ROND18*148-1820 | ETIREE | ROND | 18*14 |
| 8-2050 | TUBE ACIER ROND20*108-2050 | ETIREE | ROND | 20*10 |
| 8-2040 | TUBE ACIER ROND20*128-2040 | ETIREE | ROND | 20*12 |
| 8-2030 | TUBE ACIER ROND20*148-2030 | ETIREE | ROND | 20*14 |
| 8-2020 | TUBE ACIER ROND20*168-2020 | ETIREE | ROND | 20*16 |
| TUBE-AC-CARRE20x1.22 | TUBE ACIER CARRE20x20x1.2 | ACIER | CARRE | 20x20x1.2 |
| 8-2250 | TUBE ACIER ROND22*128-2250 | ETIREE | ROND | 22*12 |
| 8-2240 | TUBE ACIER ROND22*148-2240 | ETIREE | ROND | 22*14 |
| 8-2230 | TUBE ACIER ROND22*168-2230 | ETIREE | ROND | 22*16 |
| 8-2220 | TUBE ACIER ROND22*188-2220 | ETIREE | ROND | 22*18 |
| TUBE-AC-CARRE25x2 | TUBE ACIER CARRE25x25x2 | ACIER | CARRE | 25x25x2 |
| 8-2630 | TUBE ACIER ROND26*208-2630 | ETIREE | ROND | 26*20 |
| 8-2860 | TUBE ACIER ROND28*168-2860 | ETIREE | ROND | 28*16 |
| 8-2840 | TUBE ACIER ROND28*208-2840 | ETIREE | ROND | 28*20 |
| 8-3030 | TUBE ACIER ROND30*248-3030 | ETIREE | ROND | 30*24 |
| TUBE-AC-CARRE30x1.2 | TUBE ACIER CARRE30*30*1.2 | ACIER | CARRE | 30*30*1.2 |
| TUBE-AC-CARRE30x1.5 | TUBE ACIER CARRE30*30*1.5 | ACIER | CARRE | 30*30*1.5 |
| TUBE-AC-CARRE30x1.8 | TUBE ACIER CARRE30*30*1.8 | ACIER | CARRE | 30*30*1.8 |
| TUBE-AC-CARRE30x2 | TUBE ACIER CARRE30*30*2 | ACIER | CARRE | 30*30*2 |
| 8-3235 | TUBE ACIER ROND32*25.28-3235 | ETIREE | ROND | 32*25.2 |
| 8-3850 | TUBE ACIER ROND38*288-3850 | ETIREE | ROND | 38*28 |
| 8-3840 | TUBE ACIER ROND38*308-3840 | ETIREE | ROND | 38*30 |
| AC-A37-38X5 | TUBE ACIER ROND38X5 AC-A37-38X5 | A37 | ROND | 38X5 |
| 8-4012 | TUBE ACIER ROND40.4*388-4012 | ETIREE | ROND | 40.4*38 |
| 8-4250 | TUBE ACIER ROND42*328-4250 | ETIREE | ROND | 42*32 |
| 8-4212 | TUBE ACIER ROND42.4*408-4212 | ETIREE | ROND | 42.4*40 |
| 8-4331 | TUBE ACIER ROND43.2*378-4331 | ETIREE | ROND | 43.2*37 |
| 8-4850 | TUBE ACIER ROND48*388-4850 | ETIREE | ROND | 48*38 |
| 8-5050 | TUBE ACIER ROND50*408-5050 | ETIREE | ROND | 50*40 |
| 8-5045 | TUBE ACIER ROND50*418-5045 | ETIREE | ROND | 50*41 |
| 8-5250 | TUBE ACIER ROND52*428-5250 | ETIREE | ROND | 52*42 |
| TUBE-AC-RECT60x1.8 | TUBE ACIER RECTANGULAIRE60*30*1.8 | ACIER | RECTANGULAIRE | 60*30*1.8 |
| TUBE-AC-CARRE 60-1.8 | TUBE ACIER CARRE60X60 | ACIER | CARRE | 60X60 |
| TUBE-AC-CARRE 60×60 | TUBE ACIER CARRE60X60 | ACIER | CARRE | 60X60 |
| 8-7382 | TUBE ACIER ROND73*56.68-7382 | ETIREE | ROND | 73*56.6 |
| TUBE-AC-ROND8x1 | TUBE ACIER ROND8*1 | ACIER | ROND | 8*1 |
| TUBE-AC-ROND8x6 | TUBE ACIER ROND8*6 | ACIER | ROND | 8*6 |
| TUBE-AC-RECT80x1.7 | TUBE ACIER RECTANGULAIRE80*40*1.7 | ACIER | RECTANGULAIRE | 80*40*1.7 |
| TUBE-AC-RECT80x2 | TUBE ACIER RECTANGULAIRE80*40*2 | ACIER | RECTANGULAIRE | 80*40*2 |
| TUBE-AC-RECT80X40 | TUBE ACIER RECTANGULAIRE80X40X2.5 | ACIER | RECTANGULAIRE | 80X40X2.5 |
| TUBE-AC-ROND-E10x1 | TUBE ACIER RONDD10*1 | ETIREE | ROND | D10*1 |
| TUBE-AC-ROND10x1 | TUBE ACIER RONDD10*1 | ACIER | ROND | D10*1 |
| TUBE ST37.4 D10x1 | TUBE ACIER RONDD10x1 | ST37.4 | ROND | D10x1 |
| AC-E24-2-12*8.5 | TUBE ACIER RONDD12*8.5 | ETIRE | ROND | D12*8.5 |
| TUBE-AC-ROND14x1 | TUBE ACIER RONDD14*1 | ETIREE | ROND | D14*1 |
| TUBE-AC-ROND16x1.2 | TUBE ACIER RONDD16*1.2 | ACIER | ROND | D16*1.2 |
| TUBE-AC-ROND16x1.5 | TUBE ACIER RONDD16*1.5 | ETIREE | ROND | D16*1.5 |
| TUBE-AC-ROND18x1 | TUBE ACIER RONDD18*1 | ACIER | ROND | D18*1 |
| TUBE-AC-ROND18x1.2 | TUBE ACIER RONDD18*1.2 | ACIER | ROND | D18*1.2 |
| TUBE-AC-ROND18x1.5 | TUBE ACIER RONDD18*1.5 | ACIER | ROND | D18*1.5 |
| TUBE-AC-ROND18x2 | TUBE ACIER RONDD18*2 | ETIREE | ROND | D18*2 |
| TUBE-RD18.7×2.1-EBC | TUBE ACIER RONDD18.7*14.5 | ETIREE | ROND | D18.7*14.5 |
| TUBE-RD-19X14.5-EBC | TUBE ACIER RONDD19X14.5 | ETIREE | ROND | D19X14.5 |
| TUBE-AC-ROND20x1.2 | TUBE ACIER RONDD20*1.2 | ACIER | ROND | D20*1.2 |
| TUBE-AC-ROND 20×1.4 | TUBE ACIER RONDD20*1.4 | ACIER | ROND | D20*1.4 |
| TUBE-AC-ROND20x1.4 | TUBE ACIER RONDD20*1.4 | ACIER | ROND | D20*1.4 |
| TUBE-AC-ROND-E20x1.5 | TUBE ACIER RONDD20*1.5 | ETIRE | ROND | D20*1.5 |
| TUBE-AC-RON20X1.5 | TUBE ACIER RONDD20*1.5 | ETIREE | ROND | D20*1.5 |
| TUB-LAC-ROND20x1.5 | TUBE ACIER RONDD20*1.5 | ACIER | ROND | D20*1.5 |
| TUBE-AC-ROND20x1.5 | TUBE ACIER RONDD20*1.5 | ACIER | ROND | D20*1.5 |
| TUBE-AC-ROND20x2 | TUBE ACIER RONDD20*2 | ACIER | ROND | D20*2 |
| TUBE-AC-ROND 22×1.2 | TUBE ACIER RONDD22*1.2 | ACIER | ROND | D22*1.2 |
| TUB-LAC-ROND22x1.5 | TUBE ACIER RONDD22*1.5 | ACIER | ROND | D22*1.5 |
| TUBE-AC-ROND22x1.5 | TUBE ACIER RONDD22*1.5 | ACIER | ROND | D22*1.5 |
| TUBE-AC-RD22X18-EBC | TUBE ACIER RONDD22*18 | ETIREE | ROND | D22*18 |
| TUBE-AC-ROND22x2 | TUBE ACIER RONDD22*2 | ETIREE | ROND | D22*2 |
| TUBE-AC-RD22X16-EBC | TUBE ACIER RONDD22*3 | ACIER | ROND | D22*3 |
| TUBE-AC-ROND25x1.2 | TUBE ACIER RONDD25*1.2 | ACIER | ROND | D25*1.2 |
| TUBE-AC-ROND28x1.5 | TUBE ACIER RONDD28*1.5 | ETIREE | ROND | D28*1.5 |
| TUBE-AC-ROND28x2 | TUBE ACIER RONDD28*2 | ETIREE | ROND | D28*2 |
| TUBE-AC-ROND30x1.2 | TUBE ACIER RONDD30*1.2 | ACIER | ROND | D30*1.2 |
| TUBE-AC-ROND30x1.4 | TUBE ACIER RONDD30*1.4 | ACIER | ROND | D30*1.4 |
| TUBE-AC-30×1.5 | TUBE ACIER RONDD30*1.5 | ACIER | ROND | D30*1.5 |
| TUBE-AC-ROND30x1.5 | TUBE ACIER RONDD30*1.5 | ACIER | ROND | D30*1.5 |
| TUBE-AC-SOUDE-32×1.2 | TUBE ACIER RONDD32*1.2 | ACIER | ROND | D32*1.2 |
| TUBE-AC-ROND32x1.5 | TUBE ACIER RONDD32*1.5 | ETIREE | ROND | D32*1.5 |
| TUBE-AC-S-ROND32x1.5 | TUBE ACIER RONDD32*1.5 | ACIER | ROND | D32*1.5 |
| TUBE-AC-ROND32x3.5 | TUBE ACIER RONDD32*3.5 | ETIREE | ROND | D32*3.5 |
| TUBE-AC-ROND34x2.4 | TUBE ACIER RONDD34*29.2 | ETIREE | ROND | D34*29.2 |
| TUBE-AC-ROND35x1.2 | TUBE ACIER RONDD35*1.2 | ACIER | ROND | D35*1.2 |
| TUBE-AC-RD-S-35×1.4 | TUBE ACIER RONDD35*1.4 | ACIER | ROND | D35*1.4 |
| TUBE-AC-S-ROND35x1.5 | TUBE ACIER RONDD35*1.5 | ACIER | ROND | D35*1.5 |
| TUBE-AC-ROND35x1.5 | TUBE ACIER RONDD35*1.5 | ACIER | ROND | D35*1.5 |
| TUBE-AC-ROND36x1.5 | TUBE ACIER RONDD36*1.5 | ETIREE | ROND | D36*1.5 |
| TUBE-AC-RD37x3.5-EBC | TUBE ACIER RONDD37*30 | ETIREE | ROND | D37*30 |
| TUBE-AC-ROND38x1.2 | TUBE ACIER RONDD38*1.2 | ETIREE | ROND | D38*1.2 |
| TUBE-AC-ROND38x1.5 | TUBE ACIER RONDD38*1.5 | ETIREE | ROND | D38*1.5 |
| TUBE-AC-38×2 | TUBE ACIER RONDD38*34 | ETIREE | ROND | D38*34 |
| TUBE-AC-ROND38x5 | TUBE ACIER RONDD38*5 | ETIREE | ROND | D38*5 |
| TUBE-AC-ROND38.2×2.1 | TUBE ACIER RONDD38.2*2.1 | ETIREE | ROND | D38.2*2.1 |
| TUBE-AC-RD-S-40×1.4 | TUBE ACIER RONDD40*1.4 | ACIER | ROND | D40*1.4 |
| TUBE-AC-ROND40x1.5 | TUBE ACIER RONDD40*1.5 | ETIREE | ROND | D40*1.5 |
| TUBE-AC-ROND40x1.5-S | TUBE ACIER RONDD40*1.5 | ACIER | ROND | D40*1.5 |
| TUBE-AC-ROND40X1.8 | TUBE ACIER RONDD40*1.8 | ETIREE | ROND | D40*1.8 |
| TUBE-ROND40x3.5-EBC | TUBE ACIER RONDD40*3.5 | ETIREE | ROND | D40*3.5 |
| TUBE-AC-RD40x36-EBC | TUBE ACIER RONDD40*36 | ETIREE | ROND | D40*36 |
| TUBE-AC-RD40X5-EBC | TUBE ACIER RONDD40*5 | ETIREE | ROND | D40*5 |
| TUBE-AC-ROND-E40.2×2 | TUBE ACIER RONDD40.2*2 | ETIREE | ROND | D40.2*2 |
| TUBE-AC-ROND42x2 | TUBE ACIER RONDD42*2 | ACIER | ROND | D42*2 |
| TUBE-AC-RD42x38-EBC | TUBE ACIER RONDD42*38 | ETIREE | ROND | D42*38 |
| TUBE-AC-ROND42x5 | TUBE ACIER RONDD42*5 | ETIRE | ROND | D42*5 |
| TUBE-AC-ROND42.6×1.5 | TUBE ACIER RONDD42.6*1.5 | ETIREE | ROND | D42.6*1.5 |
| TUBE-AC-RON43.3X2.15 | TUBE ACIER RONDD43.3*2.15 | ETIREE | ROND | D43.3*2.15 |
| TUBE-AC-ROND-E45x2 | TUBE ACIER RONDD45*2 | ETIREE | ROND | D45*2 |
| TUBE-AC-RD47x3.5-EBC | TUBE ACIER RONDD47*3.5 | ETIREE | ROND | D47*3.5 |
| TUBE-AC-ROND50x5 | TUBE ACIER RONDD50*5 | ETIRE | ROND | D50*5 |
| TUBE-AC-ROND54X34 | TUBE ACIER RONDD54*34 | ETIREE | ROND | D54*34 |
| TUBE-AC-ROND54X37 | TUBE ACIER RONDD54*37 | ETIREE | ROND | D54*37 |
| TUBE-AC-ROND55x2 | TUBE ACIER RONDD55*2 | ACIER | ROND | D55*2 |
| TUBE-AC-ROND-E8x1 | TUBE ACIER RONDD8*1 | ETIREE | ROND | D8*1 |
| TUBE-AC-ROND 8X1 | TUBE ACIER RONDD8*1 | ETIREE | ROND | D8*1 |
| TUBE ST37.4 D8x1 | TUBE ACIER RONDD8x1TUBE ST37.4 D8x1 | ST37.4 | ROND | D8x1 |
